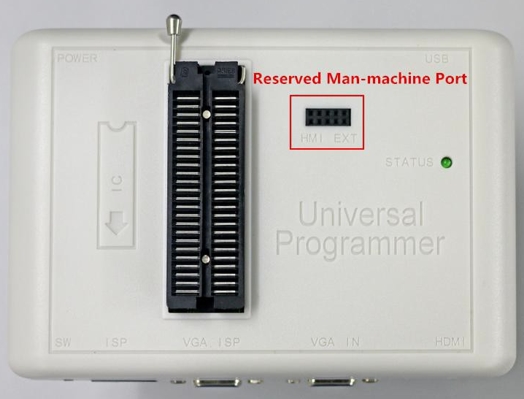

What is RT809H?

RT809H programmer is a
kind of cost-effective, reliable and fast universal programmer series, suitable for all the computers or laptops
based on Pentium IV processor or the better processors. When working, it can communicate with te
USB2.0 fast port computer directly, with driver program inside software, which makes installing operation
more convenient.
Programmer Characteristic:
-
Supporting Windows XP, Windows Vista, Windows
7, Windows 8 and Windows 10.
-
Do not need external power source, with
low-power consumption, can be used as VGA signal generator, easy to repair.
-
With Intellisense functionality, when reading
and writing most types of chip off line, it support the function of intelligent indentification
and being put at will.
-
Support 24/25/93/95 series of serial SPI
Flash. EEPROM offline read and write.
-
Support 26/27/28/29/30/39/49/50 series of NOR
Flash/ PROM read and write;
-
Support TSOP48/BGA footprint NAND Flash
parameter automatic identification and offline reading.
-

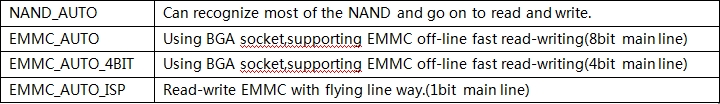

Support the mainstream device, including
EEPROM, MCU, EC Chip, SPI NOR flash, Parallel NOR flash, SPI NAND, Parallel NAND, ONENAND,
MCP, eMMC, EMCP & etc.
-
-
-
Support eMMC recognition in the on-line or
off-line way, BOOT/USER/RPOM/GPP area read and write.
-
-
I2C serial port ISP has strong function,
compatible with most of the LCD chip scheme, can check the printing information on line, read and write
NOR/NAND/eMMC chip on line, read and write the EC chip of laptop on line or
offline.
-
Support the IT8/KB90/NPCE/NEC16 series of
laptop motherboard's EC chip to read and write.
-
High-speed USB port, USB driver with WHQL
certification, the reading and writing speed can be as much as 25MB/s.
-
Full driver structure, free software
upgrade, the universal switch socket to reduce the using cost for the
user.

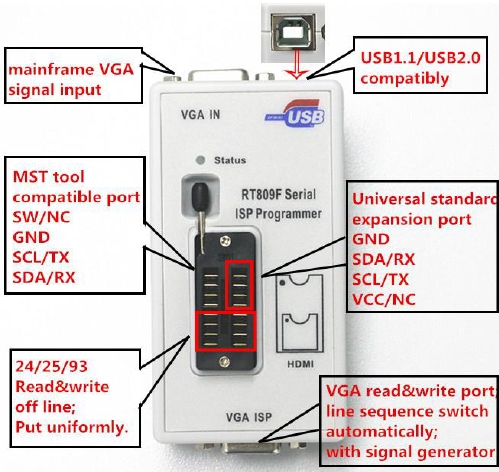

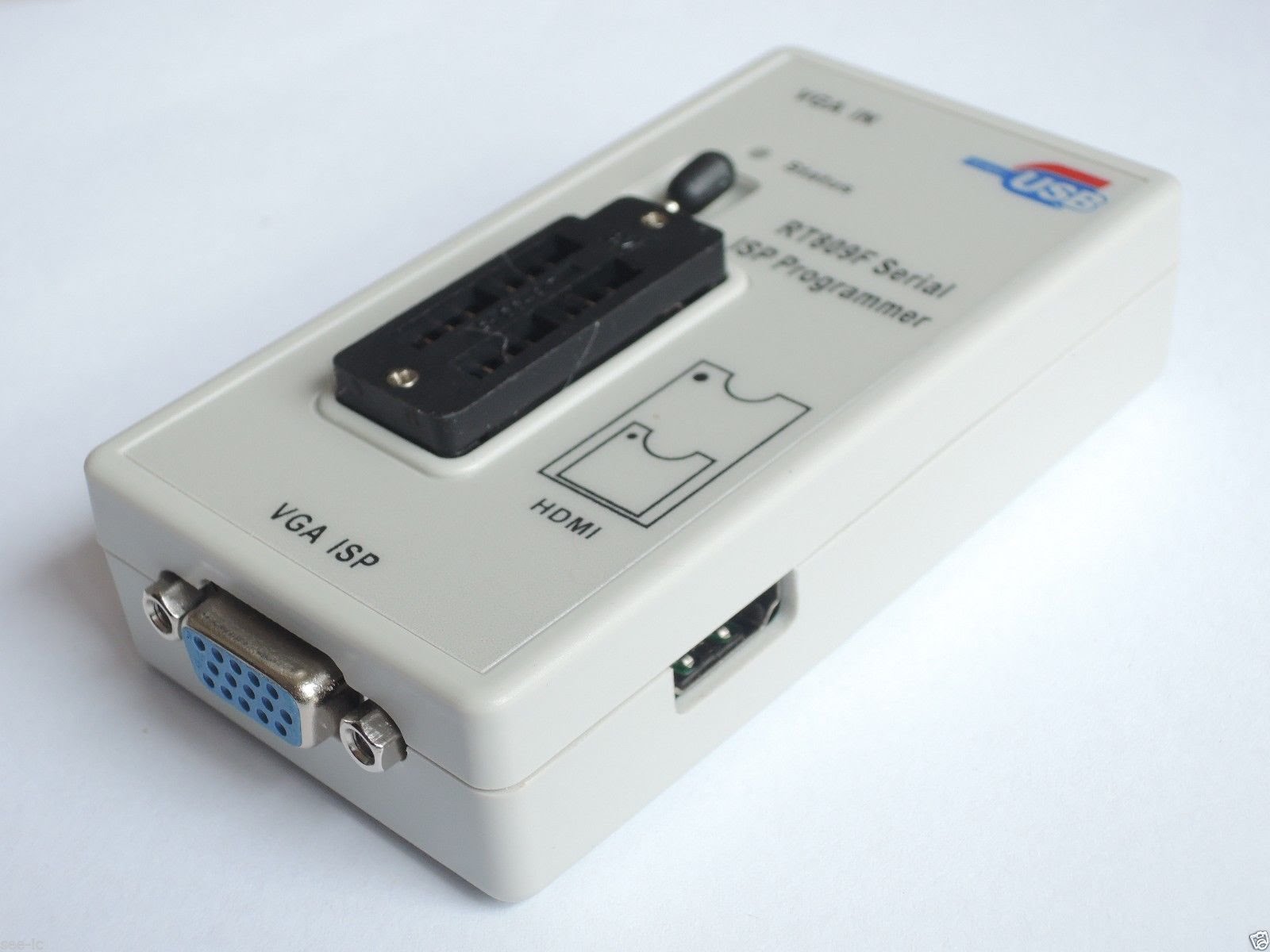

What is
RT809F?

RT809F is a kind of cost-effective, reliable and fast
universal programmer series, suitable for all the computers or laptops based on Pentium IV processors or the better
processors.When working it can communicate with the USB2.0 fast port of computer directly,with driver program
inside software, which makes installing operation more convenient.
Programmer
Characteristic:
- Supporting Windows XP,Windows Vista,Windows
7,windows 8 and windows 10 ;
- with low-power consumption,can be used as VGA
signal generator,easy to repair ;
- Support 24/25/93/95 series serial SPI Flash.
EEPROM offline read and write.
- Support 26/27/28/29/30/39/49/50 series NOR
Flash/ PROM read and write;
- Support TSOP48 and BGA footprint NAND Flash
parameter automatic identification and off line reading;
- Support the mainstream device, including
EEPROM、MCU、EC、SPI NOR flash、parallel NOR flash、SPI NAND, etc; NAND_AUTO can identify most of the NAND to read
and write;
- I2C/ serial port ISP has strong function,
compatible with most of the LCD chip scheme, can check the printing information on line and read and write on
line;
- NOR/NAND chip, can read and write the EC chip of
laptop on line or off line;
- Support the IT8/KB90/NPCE/NEC16 series of laptop
mainboard’s EC chip to read and write;
- High-speed USB port, USB driver with WHQL
certification, the reading and writing speed can be as much as 25 MB/S;
- Full driver structure, free software upgrade,
the universal socket to reduce the using cost for the user.
Attention: The chip with 32 pins or more need the
PEB-1 expansion board together to do the writing.
|
